Electric Instructions -
EP10 VAKUUM BAG OR FRAME PRESS VENEERING

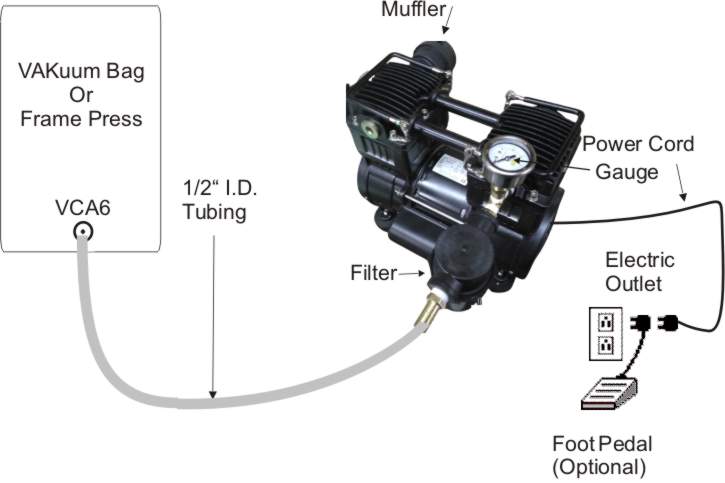

The EP10 is assembled and ready to go. Screw the filter to the intake side of the pump and attach the vacuum line to the filter and barb. Then
you will need to screw the vacuum gauge into the filer assembly. Attach the other end of the vacuum hose to either the vacuum bag or to your frame press.
Keep the filter clean for best results. When using the EP10 with a vacuum bag, allow the pump to run open for 2-3 mintues after the glue is set. This is to
flush out any vapors that may remain in the system.
