Electric Instructions -

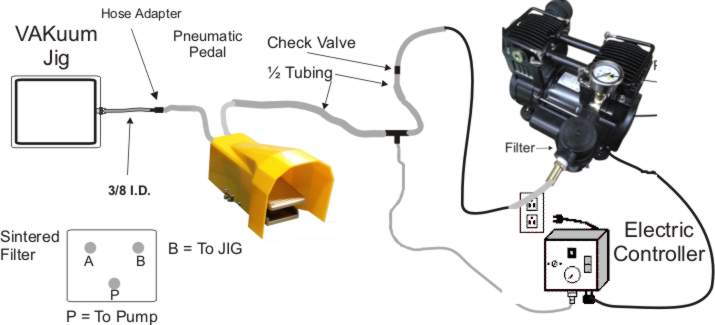

ES10 with Pnuematic Foot Pedal
The Electric Pump is always running when doing VAKuum Klamping; therefore, put the switch on the Electric Controller to “VAK Klamp.” NEVER do VAKuum
Klamping with the switch on “VAK Bag.”
When you are not using the pump for Klamping keep the foot pedal off or remove the Klamping set-up.
Pressing the pedal latches the pedal down and creates continuous vacuum to the VAK Klamp(s) and the VAK Bag(s). Pressing the pedal again releases the
pedal from the latch and shuts off the vacuum from the pedal to the klamp and allows air to bleed back to the klamp and release the piece.
